Resonant low pass filter with push-pull Q switch. Low and high Q levels can be set with onboard trimmers.

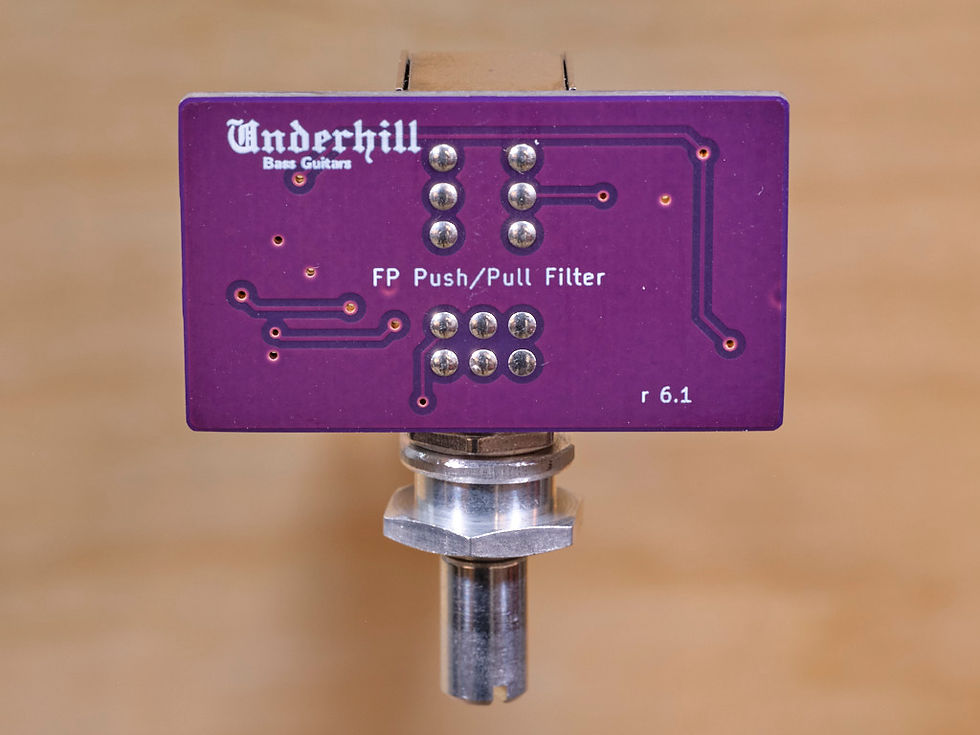

FP Push-Pull Q Filter
$44.70Price
Resonant Peak Frequency: 130-5300 Hz.
Low Q Boost Trimmer: 0-8 dB.
High Q Boost Trimmer: 0-13 dB.
Idle Current: 0.68 mA.
Board Dimensions: 38.5 x 22.1 x 7.5 mm.
Nuts, washers, and Pot Nut included.
Pot Shaft: Round, D=6mm, L=10mm.
Pot Bushing: M7x0.75, L=10mm.
Nuts, washers, and Pot Nut included.
